Hakko V712iS Touchscreen V712iSD Film Housing Repair

Hakko V712iS Touchscreen V712iSD Film Housing Repair

Hakko V712iS Touchscreen V712iSD Film Housing Repair
Hakko V712iS Touchscreen V712iSD Film Housing RepairHakko V712iS Touchscreen V712iSD Film Housing RepairHakko V712iS Touchscreen V712iSD Film Housing RepairHakko V712iS Touchscreen V712iSD Film Housing RepairHakko V712iS Touchscreen V712iSD Film Housing Repair
CategoriesHakko V7 Series
BrandVICPAS
ModelV712iS V712iSD
Warranty365 Days
BrandHakko
Product LineMonitouch V7 Series
SupplyV712iS V712iSD Touch Screen Glass Repair
Size12 inch
modelV712iS V712iSD

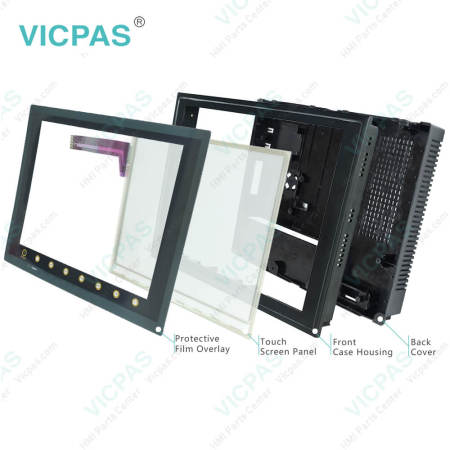

PartsTouchscreen Panel Protective Film Plastic Case
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022/6/28
Detail Information

Hakko Monitouch V712iS V712iSD Touch Screen Panel, Protective Film, Plastic Case Cover and LCD Display Repair Replacement

Order each part separately is available

V712iS V712iSD Plastic Case Shell:

Hakko Monitouch V712iS V712iSD Touch Screen Panel, Protective Film, Plastic Case Cover and LCD Display Repair Replacement


32,768-color display makes colorful expression possible. Bitmap files are clearly displayed in brilliant colors. The CF card can be used for saving multiple screen data, sampling data, recipe data, hard copy images, and other various usages. Large-sized video capture images, JPEG or WAV files can be saved. This connector enables Ethernet connection with a host computer. 100BASE-TX/10BASE-T is supported. High-speed communications are possible via Ethernet for uploading/downloading screen data and reading/writing data from/to the server. Transfer selection Select [Display <-- card="" display="" --=""> Card] or [Display <--> Card]. Video Display Upgraded (for high-performance type only/optional) The video display function is upgraded drastically to allow: saving the current video screen, taking snapshots of multiple exposures, superimposing a semi-transparent operation screen on a video display, showing four video channels at the same time, and so on.


V712iS V712iSD HMI Panel Glass Front Overlay:

Hakko Monitouch V712iS V712iSD Plastic Case Cover Repair Replacement

1. 32k-color Display (except for V706M)
32,768-color display makes colorful expression possible.
JPEG files and bitmap files are clearly displayed in brilliant colors.
2. USB Master/Slave Port as Standard
Two ports are provided as standard for diverse applications.
At the master port, a USB-compatible EPSON STYLUS PHOTO series printer or CF card reader/writer can be used. On-site versatility is extended further. At the slave port, large quantities of screen data can be transferred from the computer at a high speed.


VICPAS supply Hakko Monitouch V712iS V712iSD Touchscreen Panel, Protective Film, Plastic Case cover and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the Hakko Monitouch V712iS V712iSD HMI Parts.

Part Number : V712iS V712iSD
Display Size: 12 inches
Display Color Amber
Warranty: 365 days Warranty
Product Line: Monitouch V7 Series
Input Type: Touchscreen Glass
Mounting position: vertical
Communication: Ethernet and RS-232
Communication: ControlNet
Software FactoryTalk


Related Hakko Monitouch V7 Series Flat Panel Part No. :

Hakko V7 Series Description Inventory status
V712S Hakko Monitouch V712 Series Touchscreen Film Case Replacement In Stock
V712SD Hakko Monitouch V712 Series Touch Panel Glass Front Overlay Plastic Case Available Now
V712iS Hakko Monitouch V712 Series Touchscreen Overlay Housing Replacement In Stock
V712iSD Hakko Monitouch V712 Series Touchscreen Film Case Replacement In Stock
V712SM Hakko Monitouch V712 Series Touchscreen Front Overlay Plastic Case In Stock
V712SMD Hakko Monitouch V712 Series Touch Screen Front Overlay Plastic Case Available Now
V712iSM Hakko Monitouch V712 Series Touch Membrane Overlay Plastic Shell Available Now
V712iSMD Hakko Monitouch V712 Series HMI Touch Screen Front Film Housing In Stock
Monitouch V7 HMI Description Inventory status

Hakko Monitouch V7 Series Manuals PDF Download:

  • HAKKO Monitouch V712iS V712iSD User Manual
  • HAKKO Monitouch V7 Series Flat Panel User Manual


  • FAQ:

    Question: What is the Names and Functions of HAKKO V712iS V712iSD Panel Components?

    Answer:
    What is the Names and Functions of HAKKO V712iS V712iSD Panel Components?
    1. Display: This is the display unit.
    2. Power lamp (POWER): Illuminates (green) when the power is supplied to the V7 series.
    3. Function switches: Used for RUN /STOP selection, contrast adjustment, brightness adjustment and backlight ON/OFF (according to the setting). These switches can be used as user switches in the RUN mode.
    4. CF card connector (CF) : This is the connector where the CF card is inserted.
    5. Printer connector (PRINTER): Used for printer connection.
    6. Modular jack connectors (MJ1, MJ2): Used for screen data transfer and connection with temperature controller, barcode reader, CREC, etc.
    7. PLC communication connector (CN1): Used for connection between the V7 series and a PLC or an external control unit (computer, custom controller, etc).
    8. 100BASE-TX/10BASE-T connector (LAN) ..V7i only: Used for Ethernet connection.
    9. Power supply terminal block:Supplies the power to the V7 series (100 to 240 VAC, 24 VDC)
    10. Mounting holes: Used for inserting fixtures when securing the V7 series to the mounting panel.
    11. Communication interface unit connector (CN5)
    This is the connector where the communication unit (CU-xx, optional) for OPCN-1, T-LINK, CC-Link, Ethernet, FL-net (OPCN-2), PROFIBUS-DP, MELSECNET/10 or DeviceNet is mounted.
    12. Option unit connector (CN6) ..................................... V7i only
    This is the connector where the option unit (EU-xx) for video, sound, RGB IN or RGB OUT is mounted.
    13. Add-on memory connector (MEMORY)
    This is the connector where the optional FLASH memory cassette (V7EM-F) or SRAM cassette (V7EM-S) is mounted.
    14. DIP switch
    8-bit DIP switch used for setting terminating resistance of the CN1 signal line and the MJ1/MJ2 RS-422/485 signal line.
    15. Battery holder
    Contains a backup battery for SRAM and clock. When the battery voltage drops, replace the battery with a new one (V7-BT).


    Question: What is the Monitouch V712iS V712iSD Flat Panel price?

    Answer:Submit a fast quote, send VICPAS an email for best price.



    Common misspellings:

    V712iS 712iSD
    712iS V712iSD
    V7l2iS V712iSD
    V712Si V712iSD
    V712iS V712iiSD
