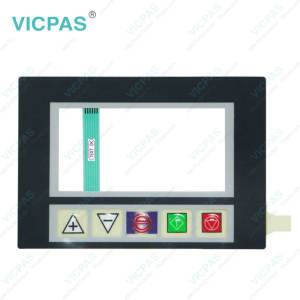

KOYO EA1 Series EA1-T4CL HMI Touch Panel Protective Film

KOYO EA1 Series EA1-T4CL HMI Touch Panel Protective Film

KOYO EA1 Series EA1-T4CL HMI Touch Panel Protective Film
KOYO EA1 Series EA1-T4CL HMI Touch Panel Protective FilmKOYO EA1 Series EA1-T4CL HMI Touch Panel Protective FilmKOYO EA1 Series EA1-T4CL HMI Touch Panel Protective FilmKOYO EA1 Series EA1-T4CL HMI Touch Panel Protective FilmKOYO EA1 Series EA1-T4CL HMI Touch Panel Protective Film
CategoriesC-more Micro Panels
BrandVICPAS
ModelEA1-T4CL
BrandKOYO
Size4 inch
Warranty365 Days
Product LineKoyo C-more Micro Panels EA1 Series
SupplyEA1-T4CL Front Overlay Touch Membrane
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeOct 9,2024
Detail Information

Koyo C-more Micro Panels Series EA1-T4CL Touch Panel Front Overlay Replacement

Order each part separately is available

Koyo C-more Micro Panels EA1 Series EA1-T4CL Touch Screen Front Overlay Repair Replacement

The EA1-T4CL Front Overlay Touchscreen C-more 4" Color Micro-Graphic panel has a 4.1-inch TFT LCD color 320 x 240 dot display with an LED backlight. EA1-T4CL Protective Film Touch Screen Monitor Terminal features five user-defined function keys, each key with a user-defined red LED indicator. The panel displays up to 40 lines by 80 characters of static text and up to 30 lines by 40 characters of dynamic text with embedded variables and phrases mixed with graphics at landscape orientation. Portrait orientation can display 60 characters and 53 lines of static text and 40 lines by 40 characters of dynamic text. EA1-T4CL is rated UL for use on a flat surface of Type 4X enclosure (for indoor use only). The C-more 4" Micro-Graphic panels are powered from a 12-24 VDC class 2 power supply during operation, or can be powered in low power mode through the USB port from a PC during programming.


Other features include:
• 3276 KB memory
• USB Type B programming port.
• Built in 15-pin serial communications port (RS-232/422/485)
• Optional replaceable clear screen overlay
• Built in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red LED blinking
• Up to 999 screens, limited only by memory usage
• 0 to 50 °C (32 to 122 °F) operating temperature range
• UL, cUL, CSA & CE agency approvals (see next page for details)


VICPAS supply Koyo C-more Micro Panels Series EA1-T4CL Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the Koyo C-more EA1 EA1-T4CL Touch Screen Monitor Front Overlay HMI Parts.

Ambient temperature: 0°C (32°F) to 50°C (122°F)
Display Resolution: 320 x 240 pixels
Part Number: EA1-T4CL
Product Line: Koyo C-more Micro Panels
Touch Size: 4"
Brand: KOYO
Display Type: TFT Color LCD
Power supply: 24 V DC
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Warranty: 365 Days


Related Koyo C-more Micro Panel HMI Part No. :

KOYO Micro Panels Description Inventory status
EA1-S3ML KOYO Micro Panels EA1 Membrane Keyboard Touch Membrane In Stock
EA1-S3ML-N Koyo C-more Panels EA1 Series Membrane Keyboard Keypad Repair In Stock
EA1-S3MLW Koyo C-more Panels EA1 Series Touch Digitizer Glass Membrane Keypad Repair Available Now
EA1-S3MLW-N KOYO C-more Micro Panels EA1 Operator Panel Keypad Replacement Available Now
EA1-S6ML Koyo C-more Panels EA1 Series Touch Screen Monitor Operator Keyboard In Stock
EA1-S6MLW Koyo C-more Panels EA1 Series Keyboard Membrane MMI Touch Screen Repair In Stock
EA1-T4CL Koyo C-more Panels EA1 Series HMI Touch Screen Protective Film Available Now
EA1-T6CL Koyo C-more Panels EA1 Series Protective Film Touchscreen Repair In Stock
EA3-S3ML Koyo C-more Panels EA3 Series HMI Keypad Membrane Touch Screen Glass Available Now
EA3-S3ML-R Koyo C-more Panels EA3 Series Switch Membrane Touch Screen Panel Repair In Stock
EA3-S3ML-RN KOYO Panels EA3 Series Membrane Keypad Switch Replacement In Stock
EA3-T4CL Koyo Micro Panels EA3 Series Touch Panel Protective Film Repair Available Now
EA3-T6CL KOYO Micro Panels EA3 Front Overlay Touch Membrane In Stock
EA3-T8CL Koyo C-more Panels EA3 Series Touch Glass Front Overlay Repair In Stock
EA3-T10CL Koyo C-more Panels EA3 Series Touch Digitizer Glass Overlay Repair Available Now
Koyo C-more Panel Description Inventory status


KOYO C-more Micro Panels HMI Manuals PDF Download:

  • C-more 3-inch Micro STN Touch Panels
  • C-more 4-inch and 6-inch Color Micro-Graphic Panels User Manual
  • C-more 4-inch Color Micro-Graphic Panel (EA1-T4CL) Quick Start Guide
  • C-more 6-inch Color Micro-Graphic Panel (EA1-T6CL) Quick Start Guide
  • C-more 6-inch Micro Quick Start Guide
  • C-more Micro 3-inch EA1 STN Touch Panel
  • C-more Micro-Graphic Panels Selection Guide
  • EA1-S3ML-QuickStart
  • EA1-S6ML PDF
  • EA1-S6MLW PDF
  • EA1-T4CL PDF
  • Hardware User Manual ® Micro Graphic Panel

  • FAQ:

    Question: Clear Screen Overlay

    Solution: Optional clear screen overlay used to protect C-more Micro-Graphic displays from minor scratches and wear. Package contains 5 clear screen overlays.
    Clear Screen Overlay

    Common misspellings:

    EA1-TCL
    A1-T4CL
    EA-1T4CL
    EA1-74CL
    EA1--T4CL
