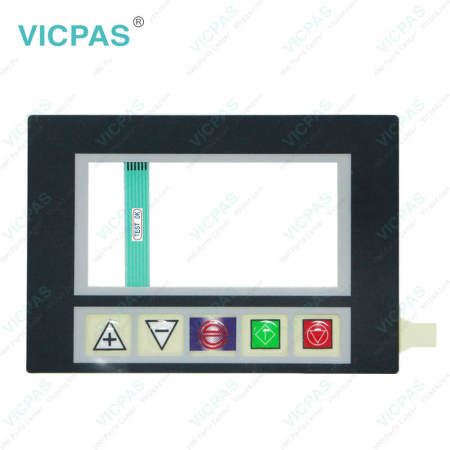

C-more Panels EA3-S3ML-R Membrane Keyboard Panel Glass

C-more Panels EA3-S3ML-R Membrane Keyboard Panel Glass

C-more Panels EA3-S3ML-R Membrane Keyboard Panel Glass
C-more Panels EA3-S3ML-R Membrane Keyboard Panel GlassC-more Panels EA3-S3ML-R Membrane Keyboard Panel GlassC-more Panels EA3-S3ML-R Membrane Keyboard Panel GlassC-more Panels EA3-S3ML-R Membrane Keyboard Panel GlassC-more Panels EA3-S3ML-R Membrane Keyboard Panel Glass
CategoriesC-more Micro Panels
BrandVICPAS
ModelEA3-S3ML-R
BrandKOYO
Size3 inch
Warranty365 Days
Product LineKoyo C-more Micro Panels EA3 Series
SupplyEA3-S3ML-R Keypad Membrane Touch Screen
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeOct 9,2024
Detail Information

Koyo C-more Micro Panel EA3 Series EA3-S3ML-R Membrane Keypad Switch Touch Pad Replacement


Koyo C-more EA3 Series EA3-S3ML-R Touch Screen Membrane Keyboard Keypad Repair Replacement

VICPAS supply Koyo C-more Micro Panels EA3 Series EA3-S3ML-R Operator Keyboard and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping. The EA3-S3ML-R Keyboard Membrane Touch Screen C-more 3-inch Micro touch panel has a 3.1-inch STN LCD monochrome display and twelve selectable LED-driven backlight colors. It features a 128 x 64 pixel display, and five user-defined function keys each with a user-defined red LED indicator. This C-more Micro panel is powered through the RJ-12 serial communications port of most AutomationDirect PLC's or from the USB port of a PC using the EA-MG-PGM-CBL programming cable assembly. This panel supports only AutomationDirect PLC protocols and Modbus RTU (master only). (For other controllers consider the EA3-S3ML). The panel is NEMA 4/4X indoor when installed correctly.


EA3-S3ML-R Touch Membrane Operator Panel Keypad Terminal Features
• Touch screen display
• 128 x 64 pixel display with up to 10 lines by 32 characters of text and graphics
• 12-Color LED backlight for longer lifetime; Red, Green, Amber, Yellow, Lime, Pink 1, Pink 2, Pink 3, Emerald 1, Emerald 2, Emerald 3 and White
• Optional replaceable clear screen overlay
• Up to 10 lines by 21 characters of dynamic text with embedded variables and phrases mixed with graphics
• 5 programmable function keys can change with every screen. Can increment / decrement values, trigger recipes, view index of screens.




Specifications:

The table below describes the parameters of the Koyo C-more Micro Panel EA3-S3ML-R Keypad Membrane Touch Screen HMI Parts.

Ambient temperature: 0°C (32°F) to 50°C (122°F)
Display Resolution: 128 x 64 pixels
Model Number: EA3-S3ML-R
Product Line: Koyo C-more Micro Panel
Touch Size: 3.1"
Brand: KOYO
Display Type: STN Color LCD
Power supply: 24 V DC
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Warranty: 365 Days


Related Koyo C-more Micro Panel HMI Part No. :

KOYO Micro Panels Description Inventory status
EA1-S3ML KOYO Micro Panels EA1 Membrane Keyboard Touch Membrane In Stock
EA1-S3ML-N Koyo C-more Panels EA1 Series Membrane Keyboard Keypad Repair In Stock
EA1-S3MLW Koyo C-more Panels EA1 Series Touch Digitizer Glass Membrane Keypad Repair Available Now
EA1-S3MLW-N KOYO C-more Micro Panels EA1 Operator Panel Keypad Replacement Available Now
EA1-S6ML Koyo C-more Panels EA1 Series Touch Screen Monitor Operator Keyboard In Stock
EA1-S6MLW Koyo C-more Panels EA1 Series Keyboard Membrane MMI Touch Screen Repair In Stock
EA1-T4CL Koyo C-more Panels EA1 Series HMI Touch Screen Protective Film Available Now
EA1-T6CL Koyo C-more Panels EA1 Series Protective Film Touchscreen Repair In Stock
EA3-S3ML Koyo C-more Panels EA3 Series HMI Keypad Membrane Touch Screen Glass Available Now
EA3-S3ML-R Koyo C-more Panels EA3 Series Switch Membrane Touch Screen Panel Repair In Stock
EA3-S3ML-RN KOYO Panels EA3 Series Membrane Keypad Switch Replacement In Stock
EA3-T4CL Koyo Micro Panels EA3 Series Touch Panel Protective Film Repair Available Now
EA3-T6CL KOYO Micro Panels EA3 Front Overlay Touch Membrane In Stock
EA3-T8CL Koyo C-more Panels EA3 Series Touch Glass Front Overlay Repair In Stock
EA3-T10CL Koyo C-more Panels EA3 Series Touch Digitizer Glass Overlay Repair Available Now
Koyo C-more Panel Description Inventory status


KOYO C-more Micro Panels HMI Manuals PDF Download:

  • C-more Micro EA3-S3ML PDF
  • C-more Micro EA3-S3ML-R PDF
  • C-more Micro EA3-S3ML-RN PDF
  • C-more Micro EA3-T4CL PDF
  • C-more Micro EA3-T6CL PDF
  • C-more Micro EA3-T8CL PDF
  • C-more Micro EA3-T10CL PDF
  • C-more Micro Panel EA3 Series contents
  • EA3 Series Panels Hardware User Manual
  • EA-ECOM Ethernet Communications Module

  • FAQ:

    Question: Access the Touch Panel Setup Screens

    Solution:
    • Access the Main Menu of the touch panel System Setup Screens by pressing the extreme upper left corner of the panel display area for three (3) seconds as shown below.
    • Adjust the time and date for the panel by pressing the Setting button on the Main Menu, then press the Adjust Clock button on the Setting screen.
    • Use the right pointing arrows for the time or date display to select the unit to change. Use the up and down arrows to increment or decrement the value for the selected unit.
    • Press OK when done to accept the changes to the time and date that is retained in the touch panel's battery backed memory, or press Cancel to exit the Adjust Clock setup screen without making any changes.
    • Press the Main Menu button on the Setting screen and then the Exit button on the Main Menu screen to return to the application screen.
    Access the Touch Panel Setup Screens
