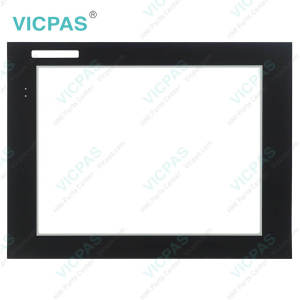

KOYO ATM1500 HMI Touch Panel Protective Film Replacement

KOYO ATM1500 HMI Touch Panel Protective Film Replacement

KOYO ATM1500 HMI Touch Panel Protective Film Replacement
KOYO ATM1500 HMI Touch Panel Protective Film ReplacementKOYO ATM1500 HMI Touch Panel Protective Film ReplacementKOYO ATM1500 HMI Touch Panel Protective Film ReplacementKOYO ATM1500 HMI Touch Panel Protective Film ReplacementKOYO ATM1500 HMI Touch Panel Protective Film Replacement
CategoriesKoyo Other Series
BrandVICPAS
ModelATM1500
BrandKOYO
Size15 inch
Warranty365 Days
Product LineATLAS Industrial Monitors
SupplyATM1500 Front Overlay Touch Membrane
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeMay 30,2024
Detail Information

Koyo ATLAS Industrial Monitors ATM1500 Touch Panel Front Overlay Replacement

Order each part separately is available

Koyo ATLAS Industrial Monitors ATM1500 Touch Screen Front Overlay Repair Replacement

Atlas industrial ATM1500 Front Overlay Touch Membrane monitors are high-performance color TFT flat panel monitors specifically designed for harsh industrial environments including Class I Division 2, Class II Division 2 and Class 3 hazardous locations. Each monitor accepts standard analog VGA or digital DVI inputs and can display all VESA video modes up to 1280 x 1024 at 75Hz with 16 million colors. An optional 5-wire analog ATM1500 touchscreen offers RS-232 and USB interface capability. The ATM1500 HMI Panel Glass Protective Film monitor is housed in a heavy-duty steel chassis with a powder-coated machined aluminum bezel. The monitor is certified to NEMA 4/4X/12 standards and is UL/CUL listed. Panel mounting is simplified using convenient mounting clips instead of conventional studs.


VICPAS supplies ATLAS Industrial Monitors ATM1500 Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the Koyo ATLAS Industrial Monitors ATM1500 Touch Screen Monitor Front Overlay HMI Parts.

Ambient temperature: 0°C (32°F) to 50°C (122°F)
Display Resolution: 1024 x 768 pixels
Part Number: ATM1500
Product Line: ATLAS Industrial Monitors
Touch Size: 15"
Brand: KOYO
Display Type: TFT Color LCD
Power supply: 24 V DC
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Warranty: 365 Days


Related Koyo ATLAS Industrial Monitors Series HMI Part No. :

ATLAS Industrial Monitors Description Inventory status
ATM1500 KOYO ATLAS Industrial Monitors Front Overlay Touch Membrane In Stock
ATM1500T Koyo ATLAS Industrial Monitors Touch Glass Front Overlay Repair In Stock
ATM1700 Koyo ATLAS Industrial Monitors Touch Digitizer Glass Overlay Repair Available Now
ATM1700T KOYO ATLAS Industrial Monitors HMI Panel Glass Protective Film Available Now
ATM1900 Koyo ATLAS Industrial Monitors Touch Screen Monitor Front Overlay In Stock
ATM1900T Koyo ATLAS Industrial Monitors Front Overlay MMI Touch Screen Replacement Available Now
ATLAS Industrial Monitors Description Inventory status


KOYO Atlas Industrial Monitor HMI Manuals PDF Download:

  • Atlas Industrial Monitor 15-inch PDF
  • Atlas Industrial Monitor 17-inch PDF
  • Atlas Industrial Monitor 19-inch PDF
  • Atlas™ Industrial Flat Panel PC Monitor Quick Installation Guide
  • Industrial Flat Panel PC Monitor User's Guide

  • FAQ:

    Question: Optional Protective Cover Installation

    Solution:
    Step 1: Gather the parts of the protective cover; top shell, bottom shell, label insert, and wire tie. The picture shows the wire tie (top), label insert (right), bottom shell (left), and top shell (lower right).
    Optional Protective Cover Installation
    Step 2: Insert your pre-wired connector (with the screws facing up) into the bottom shell. (See manual for cable wiring instructions).
    Optional Protective Cover Installation
    Step 3: Insert the wire tie from the bottom shell, loop around the cable and come back out of the opposite hole in the bottom shell.
    Optional Protective Cover Installation
    Step 4: Tighten the wire tie around the cable and the bottom shell.
    Optional Protective Cover Installation
    Step 5: Seat the top shell onto the bottom as shown. Insert label strip (if desired) in slot on top shell and bottom shell.
    Optional Protective Cover Installation
    Step 6: Snap the top and bottom shells together.
    Optional Protective Cover Installation
