Operator Panel Keypad 2707-V40P2D Replacement

Operator Panel Keypad 2707-V40P2D Replacement

Operator Panel Keypad 2707-V40P2D Replacement
Operator Panel Keypad 2707-V40P2D ReplacementOperator Panel Keypad 2707-V40P2D Replacement
CategoriesAllen Bradley membrane keyboard
BrandVICPAS
Model2707-V40P2D
Warranty180 Days
BrandRockwell Automation Allen Bradley
Product LineDTAM Plus
SupplyDTAM Plus Terminals Membrane keypad
model2707-V40P2D
PartsKeypad Switch Repair LCD Display
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeDec 4,2024
Detail Information

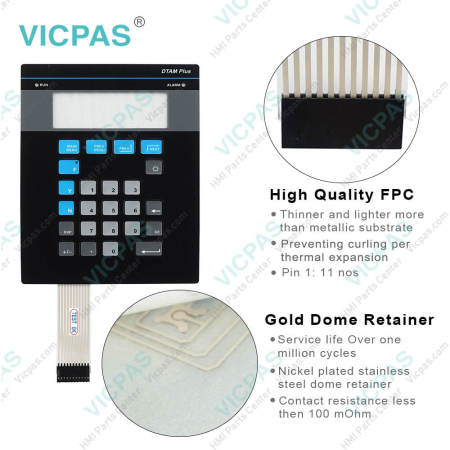

2707-V40P2D DTAM Plus Terminals Switch Membrane and LCD Screen Repair Replacement


2707-V40P2D DTAM Plus Terminals Membrane Keypad Keyboard and LCD Display Repair Replacement


DTAM 2707-V40P2D Application screens can have a variety of appearances. The DTAM Plus 2707-V40P2D can display seven types of screens.
• Menu and Sub-Menu Screens
• Security Screens
• Data Display Screens
• Data Entry Screens
• Recipe Screens
• Bargraph Screens
• Alarm Screens


The DTAM Plus 2707-V40P2D provides several options for changing the screen displays:
• Screen links
• Advisor option


The DTAM Plus Term option on the Function Menu lets you set communication and display parameters for using the DTAM Plus 2707-V40P2D in terminal mode. Terminal Mode disables execution of the application program and enables the DTAM Plus to function as a terminal device. In DTAM Plus Terminal mode, the DTAM Plus displays any ASCII data received through the communications port. The ASCII codes associated with the keys on the DTAM Plus keypads are transmitted through the communications port when a key is pressed. To activate terminal mode, you must set DIP switch SW1-5 to ON and reset the device. The 2707-V40P2D display is cleared and ready to display received data.


The terminal 2707-V40P2D must be mounted in a panel or enclosure to protect the internal circuitry. The terminal 2707-V40P2D meets NEMA Type 4, 12, 13 (indoor use only) or 4X (indoor 2707-V40P2N, -V40P2NR) ratings only when mounted in a panel or enclosure with the equivalent rating.



  Contact Best Price


Specifications:

The table below describes the parameters of the DTAM Plus 2707-V40P2D terminals Parts.

Part Number : 2707-V40P2D
Software FactoryTalk
Display ColorAmber
Warranty: 180 days Warranty
Product Line:DTAM Plus
Input Type:Keypad
Mounting position: vertical
Communication: Ethernet and RS-232
Communication:ControlNet


Related Allen Bradley DTAM Plus Terminals Part No. :

DTAM Plus HMI Description Inventory status
2707-V40P1 DTAM Plus Membrane Keypad Keyboard Repair Kit In Stock
2707-V40P1R Rockwell DTAM Plus Terminals Membrane Keyboard Replacement Available Now
2707-V40P2 Allen Bradley DTAM Plus Membrane Keypad Repair In Stock
2707-V40P2D DTAM Plus Allen Bradley Keypad Repalcement Available Now
2707-V40P2N DTAM Plus Membrane Switch Replacement Kit Available Now
2707-V40P2NR AB DTAM Plus Operator Panel Keypad Repair In Stock
2707-V40P2R DTAM Plus Membrane Keypad Switch Repair Kit Available Now
AB DTAM Plus Description Inventory status

Allen Bradley DTAM Plus Manuals PDF Download:

  • DTAM Programming Software Programming Manual
  • Allen Bradley DTAM Plus 2707-V40P2D Technical Data
  • DTAM Plus 2707-V40P2D Operator Interface Module Installation Instructions
  • DTAM Plus 2707-V40P2D Getting Started User Manual

  • FAQ:

    Question: How to connect the DTAM Plus terminal 2707-V40P2D to an RS-485 device?

    Answer:
    1. Make sure that the power to the DTAM Plus is off.
    2. Use the proper cabling to connect the DTAM Plus communications port to the port of the controller (PLC-5 channel 0 or SLC 5/03 or SLC 5/04 RS-232 port).
    • Use cable, Catalog No. 2707-NC4 for PLC-5 channel 0 RS-422 connection
    • Use cable, Catalog No. 2707-NC5 for PLC-5 channel 0 RS-232 connection. The 2707-NC5 cable converts the signals from the RS-485 port to RS-232 levels.
    • Use cable, Catalog No. 1747-CP3 for SLC 5/03, 5/04, 5/05 port connection
    If you need to make your own cable, refer to the connection diagrams in Appendix B. The maximum cable length is 200 feet (60.8 meters). Important: The DH-485 network cable requires proper shielding, grounding, and termination. Refer to Data Highway / Data Highway Plus / Data Highway-485 Cable Installation Manual (Pub. No. 1770-6.2.2).
    3. The DH-485 connectors are not electrically isolated. If electrical isolation is required, use Link Couplers (Catalog No. 1747-AIC) shown above.
    How to connect the DTAM Plus terminal 2707-V40P2D to an RS-485 device?
    4. Make sure that the communication parameters of the DTAM Plus terminal match the host device.
    5. Apply power and verify that communications are established.


    Question: How to reset the Rockwell Allen Bradley DTAM Plus 2707-V40P2D?

    Answer:
    1. From the Function Menu, select Reset [4].
    How to reset the Rockwell Allen Bradley DTAM Plus 2707-V40P2D?
    This screen appears:
    How to reset the Rockwell Allen Bradley DTAM Plus 2707-V40P2D?
    2. Press [Y] on the keypad to initiate the reset.
    The DTAM Plus resets. This has the same effect as turning the power off and on. The DTAM Plus performs the self diagnostic tests and powerup displays as described in the previous section.


    Question: What is the 2707-V40P2D DTAM Plus HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
