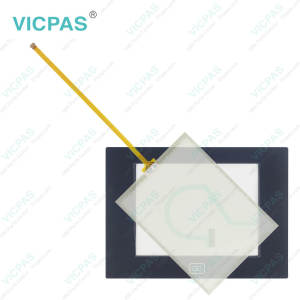

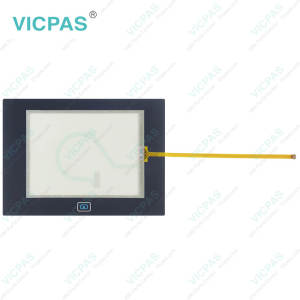

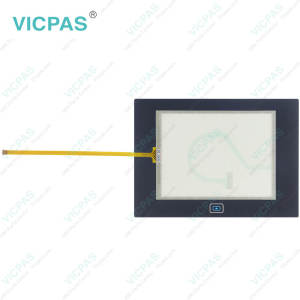

2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit

2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit

2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit
2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit
CategoriesPanelView 5500
BrandVICPAS
Model2715-B7CD-B
Warranty365 Days
Product LineAllen-Bradley PanelView 5500 Repair Kit
TypesTouch Screen Panel Operator Panel Keypad
Shipping2-3 workdays
Size7 inches
FPC10 wires
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeMar 29,2024
Detail Information

Allen-Bradley PanelView 5500 HMI 2715-B7CD-B Touch Screen Panel Membrane Keyboard Repair

Order each part separately is available

Allen-Bradley PanelView 5500 HMI 2715-B7CD-B Touchscreen Membrane Keyboard Replacement

The Studio 5000 environment includes these applications:

• View Designer – you can create and design a project for a specific the 2715-B7CD-B LCD Display Panel Operator Keyboard HMI Touch Screen terminal and download the project to the terminal. You can create an application for any PanelView 5500 terminal and reuse that same application across the entire platform.

• Logix Designer – you can develop control logic for a CompactLogix or ControlLogix controller and download the logic to the controller.


The 2715-B7CD-B LCD Display Screen Keyboard Membrane Resistive Touch Panel terminals include these features and capabilities:

• Supports a maximum of 50 user-defined screens (the screens will increase in future firmware).

• Supports a maximum of 500 Logix-based alarms (the alarms will increase in future firmware).

• Ethernet communication supporting Device Level Ring (DLR), linear, or star network topologies.

• High-speed human machine interface (HMI) button control and easily configured navigation menu.


VICPAS supply Allen Bradley PanelView 5500 HMI 2715-B7CD-B Resistive Touch Panel Membrane Keyboard Keypad and LCD Display Panel with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 2715-B7CD-B PanelView 5500 Parts.

Part Number: 2715-B7CD-B
Warranty: 365 Days
Backlight: LED, non-replaceable
USB Host Ports (type A): 0.5A at 5V DC
Input Voltage: 24V DC nom (18…30V DC)
Brightness: 300 cd/m2 (Nits)
Status Indicators: STS (green), ERR (red)
Color Depth: 18-bit color graphics
Display Resolution: 640 x 480 VGA, 4:3
View Area(W x H): 132 x 99 mm


Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500 Description Inventory status
2715-T7CA PanelView 5500 2715-T7CA Touch Panel Front Film Repair In Stock
2715-T7CA-B PanelView 5500 2715-T7CA-B Panel Glass Film Repair kit Available Now
2715-T7CD 2715-T7CD PanelView 5500 Touch Digitizer Overlay Repair In Stock
2715-T7CD-B 2715-T7CD-B PanelView 5500 Touch Overlay Replacement Available Now
2715-B7CA PanelView 5500 2715-B7CA Glass Display Keypad Repair In Stock
2715-B7CA-B PanelView 5500 2715-B7CA-B Keyboard Display Touch Glass In Stock
2715-B7CD 2715-B7CD PanelView 5500 Keypad LCD Display Touch Repair In Stock
2715-B7CD-B 2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit Available Now
2715-T9WA 2715-T9WA PanelView 5500 Front Overlay Glass Repair In Stock
2715-T9WA-B 2715-T9WA-B PanelView 5500 Panel Glass Film Repair Kit Available Now
2715-T9WD PanelView 5500 2715-T9WD Touch Overlay Replacement In Stock
2715-T9WD-B PanelView 5500 2715-T9WD-B Touch Glass Film Replacement In Stock
PanelView 5500 HMI Description Inventory status

PanelView 5500 HMI Manuals PDF Download:

  • Allen-Bradley PanelView 5500 Terminals User Manual
  • PanelView 5500 Specifications Technical Data
  • Allen-Bradley PanelView Standard Terminal Specifications

  • FAQ:

    Question: What do the two indicators on the back of the terminal do?

    Answer: The back of the PanelView 5500 HMI 2715-B7CD-B Switch Membrane Touch Screen LCD Display terminal has two indicators to identify system status:

    • STS indicator (green) indicates that the HMI 2715-B7CD-B Keypad Membrane Resistive Touch Panel LCD Display terminal is on and in use.

    • ERR indicator (red) indicates hardware and firmware faults. At startup, the STS and ERR indicators blink on and off, then the STS indicator blinks to signal progress during startup. If the indicators remain off, check the power cable. After a successful startup, the STS indicator remains on.

    What do the two indicators on the back of the terminal do?


    Question: How to connect the PanelView 5500 2715-B7CD-B Keyboard Membrane HMI Touch Panel LCD Screen Display terminal to a DC power source?

    Answer:

  • 1. Verify that the wiring is not connected to a power source.
  • 2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.
  • How to connect the operator terminal to a DC power source?
  • 3.Secure the DC power wires to the marked terminals (+ and –) on the terminal block.
  • Allen-Bradley PanelView 5500 HMI 2715-B7CD-B Operator Keyboard Touch Screen monitor LCD Display Screen Replacement
  • 4. Secure the earth ground wire to the GND terminal on the terminal block. The GND terminal must be connected to a low-impedance earth ground.
  • 5. Apply power to the PanelView 5500 HMI 2715-B7CD-B Operator Keyboard Touch Screen monitor LCD Display Screen operator terminal.

  • Common misspellings:

    275-B7CD-B
    2715-B7C-B
    7215-B7CD-B
    2715-7BCD-B
    2715--B7CD-B
