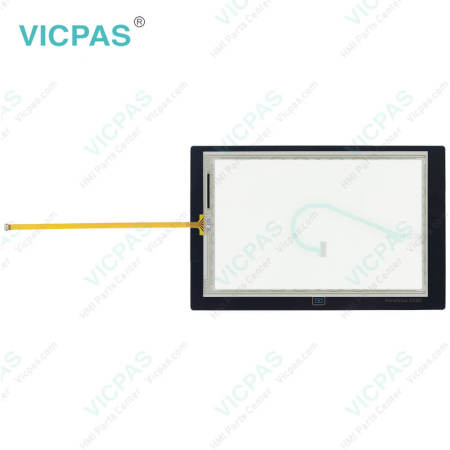

PanelView 5500 2715-T9WD Touch Overlay Replacement

PanelView 5500 2715-T9WD Touch Overlay Replacement

PanelView 5500 2715-T9WD Touch Overlay Replacement
PanelView 5500 2715-T9WD Touch Overlay ReplacementPanelView 5500 2715-T9WD Touch Overlay ReplacementPanelView 5500 2715-T9WD Touch Overlay ReplacementPanelView 5500 2715-T9WD Touch Overlay Replacement
CategoriesPanelView 5500
BrandVICPAS
Model2715-T9WD
Warranty365 Days
Product LineAllen-Bradley PanelView 5500 Repair Kit
TypesTouch Screen Panel Glass Overlay
Shipping2-3 workdays
Size9 inches
FPC10 wires
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeJul 22,2024
Detail Information

Allen-Bradley PanelView 5500 HMI 2715-T9WD Protective Film Touch Screen Panel Repair Replacement

Allen-Bradley PanelView 5500 HMI 2715-T9WD Protective Film Touchscreen Replacement

The PanelView 5500 HMI 2715-T9WD Touch Screen Glass Protective Film terminal has a color display with a touch screen and navigation key, or a touch screen, navigation key, and keypad for operator control.

• Analog, resistive, touch screens provide accurate, durable touch with excellent reliability for control of industrial applications.

• Keypad models are similar except for the number of function keys to the left (L#) and right (R#) of the display. Larger models have more keys.


The PanelView Standard 2715-T9WD Touch Screen Monitor Front Overlay terminals feature pixel graphics capabilities and functionality in color, grayscale, and monochrome displays. These rugged electronic operator interface solutions are available in a variety of sizes and configurations to meet specific application requirements. All use common development software to simplify programming and improve operator productivity.


The PanelView 5500 HMI 2715-T9WD Protective Film Touch Panel Glass terminal communicates with PLC and SLC controllers over EtherNet/IP, DeviceNet, ControlNet, DH-485, DH+, and remote I/O networks, or by using serial communication.Other features supported by the PanelView Standard line include advanced alarm handling, screen security, analog gauges, ATA memory card, universal language support, and online printing for more intuitive operator control.


VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T9WD Resistive Touch Panel and Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 2715-T9WD PanelView 5500 Parts.

Part Number: 2715-T9WD
View Area(W x H): 196 x 118 mm
Display Resolution: 800 x 480 WVGA, 5:3
Display Size: 9 inches widescreen
Product Line: PanelView 5500
Operating Temperature: 0°C - 55°C
Storage Temperature: - 25°C - 70°C
Status Indicators: STS (green), ERR (red)
Brightness: 300 cd/m2 (Nits)
Input Voltage: 24V DC nom (18…30V DC)


Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500 Description Inventory status
2715-T7CA PanelView 5500 2715-T7CA Touch Panel Front Film Repair In Stock
2715-T7CA-B PanelView 5500 2715-T7CA-B Panel Glass Film Repair kit Available Now
2715-T7CD 2715-T7CD PanelView 5500 Touch Digitizer Overlay Repair In Stock
2715-T7CD-B 2715-T7CD-B PanelView 5500 Touch Overlay Replacement Available Now
2715-B7CA PanelView 5500 2715-B7CA Glass Display Keypad Repair In Stock
2715-B7CA-B PanelView 5500 2715-B7CA-B Keyboard Display Touch Glass In Stock
2715-B7CD 2715-B7CD PanelView 5500 Keypad LCD Display Touch Repair In Stock
2715-B7CD-B 2715-B7CD-B PanelView 5500 Touch Digitizer Keyboard Kit Available Now
2715-T9WA 2715-T9WA PanelView 5500 Front Overlay Glass Repair In Stock
2715-T9WA-B 2715-T9WA-B PanelView 5500 Panel Glass Film Repair Kit Available Now
2715-T9WD PanelView 5500 2715-T9WD Touch Overlay Replacement In Stock
2715-T9WD-B PanelView 5500 2715-T9WD-B Touch Glass Film Replacement In Stock
PanelView 5500 HMI Description Inventory status

PanelView 5500 HMI Manuals PDF Download:

  • Allen-Bradley PanelView 5500 Terminals User Manual
  • Allen-Bradley PanelView Standard Terminal Specifications
  • PanelView 5500 Specifications Technical Data

  • FAQ:

    Question: What is the size of the 2715-T9WD HMI Touch Digitizer Monitor and Overlay?

    Answer: The 2715-T9WD HMI Touch Panel and Protective Film are 9-inch.


    Question: What is the 2715-T9WD Panelview 5500 Resistive Touch Screen Protective Film HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: What do the two indicators on the back of the terminal do?

    Answer: The back of the 2715-T9WD Touch Screen Film Hmi terminal has two indicators to identify system status:

  • • STS indicator (green) indicates that the 2715-T9WD Overlay Touch Digitizer Monitor terminal is on and in use.
  • • ERR indicator (red) indicates hardware and firmware faults. At startup, the STS and ERR indicators blink on and off, then the STS indicator blinks to signal progress during startup. If the indicators remain off, check the power cable. After a successful startup, the STS indicator remains on.
  • What do the two indicators on the back of the terminal do?


    Common misspellings:

    271-T9WD
    2715-TWD
    2715T-9WD
    7215-T9WD
    27155-T9WD
